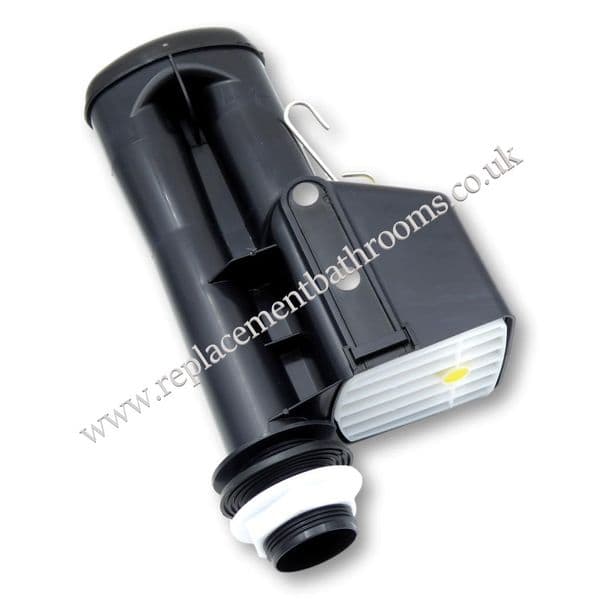

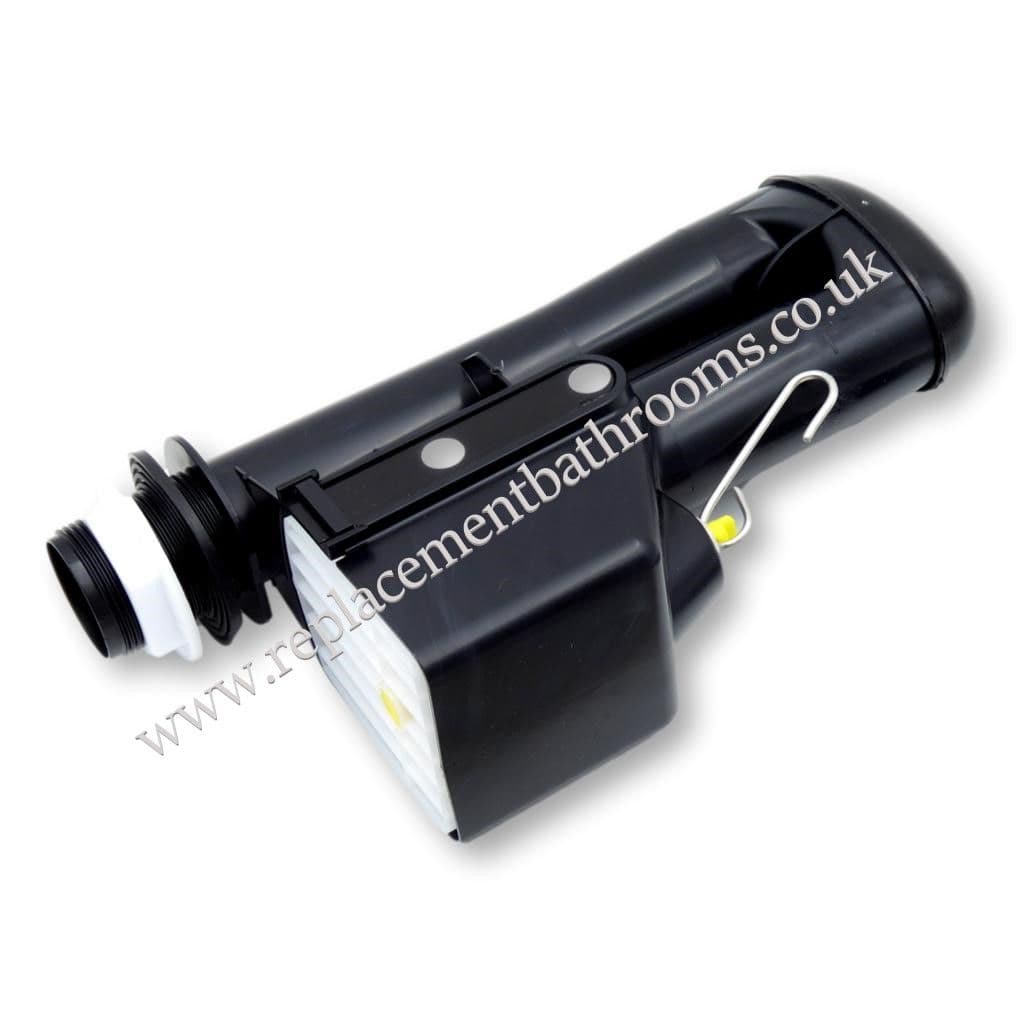

Siphon for SPRING BATHROOMS (Fordhams) luxury range cisterns

Complete replacement syphon assembly to suit SPRING BATHROOMS (Fordhams) luxury range of WC cistern tanks usually fitted with a side mounted lever

• Models using this tank included PARIS, ARENA, VIENNA, DERWENT, BALLET (plus many others)Tank size (without lid) will be 390 mm (w) x 330mm (h) x 2100mm (d) (approx)Tank will be fitted with a side action paddle type lever either mounted through a round hole or in a U shape cut out in the side of the cistern.
• Siphon supplied with siphon cistern internal sealing washer and lock nut.
• Three water capacity flush options.
• Supplied configured for dual flush. Parts and instructions provided for simple conversion to mono flush.
• Replacement close coupling kit ( Inc plate,bolts & 3 different types of washer) can be purchased as extra ( recommended ). Click item option box to select.

​​​​​​​​​​​​​​

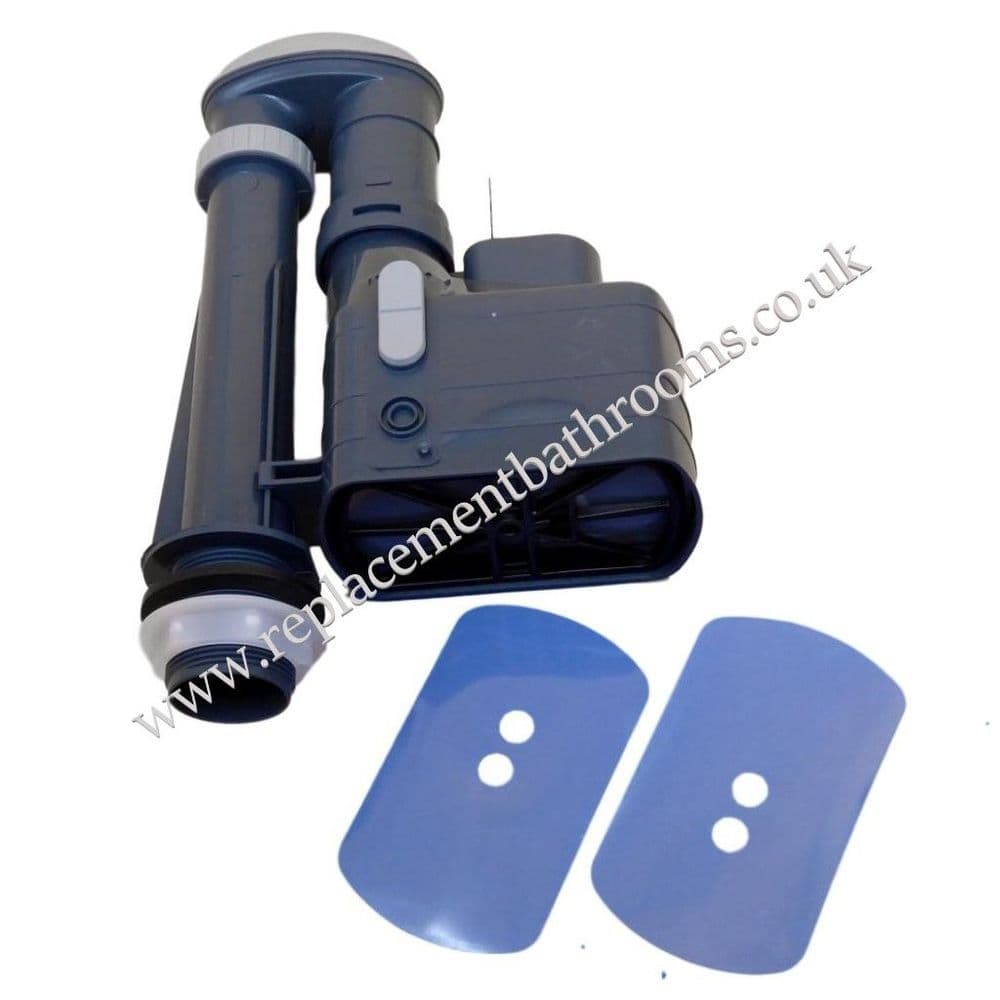

For alternative three part, easy maintenance,siphon click here

​​​​​​​​​​​​​​

• For cisterns with front mounted levers click here
