THREE PART toilet siphon replacement with integral internal overflow
-21742-p.jpeg?v=1f104979-1e04-4870-bdec-544033610906)
-21742-p.jpg?v=1f104979-1e04-4870-bdec-544033610906)
-21742-p.jpeg?v=1f104979-1e04-4870-bdec-544033610906)

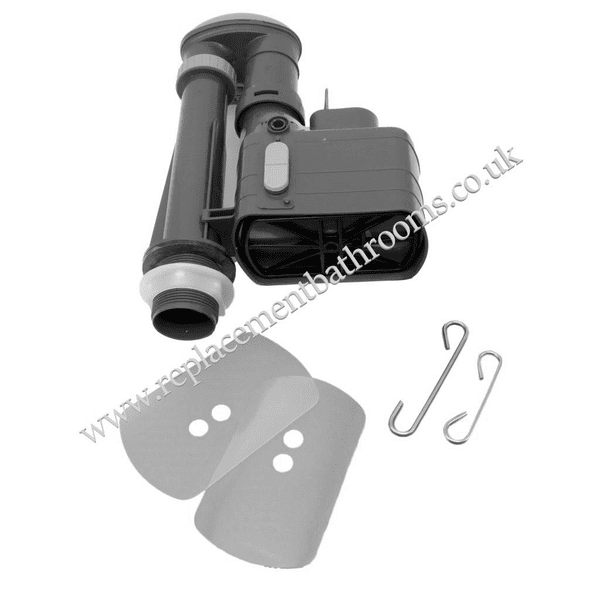

Three part replacement siphon assembly suitable for many designs of lever flush cisterns. Choose correct height to provide integral overflow facility.
- Three part construction enables siphon to be removed for future maintenance without the need to disconnect the cistern.

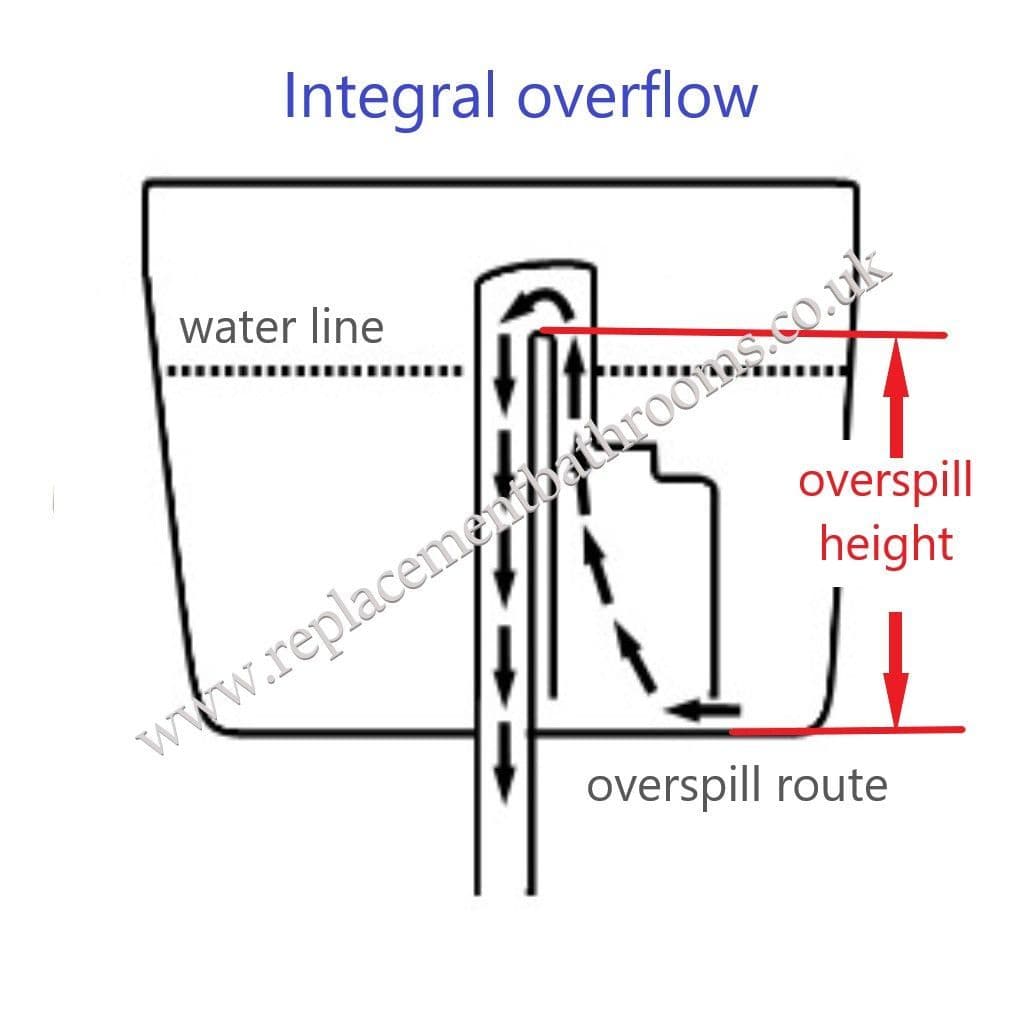

- For integral overflow facility determine overspill height required by measuring from base of cistern to the normal waterline and adding 25mm, ensuring that this measurement is a minimum of 10mm below any aperture in the cistern ( eg cistern lever hole, wall fixing holes or any other cut outs ).
- Supplied with two replacement diaphragm washers and two different length C links to ensure correct alignment of cistern lever.
- Can be configured for 9 , 7 or 6 litre capacity flushes.
- Supplied with siphon cistern sealing washer and lock nut.
- Order cistern overflow hole blanking plug ( see below ) as additional item if external overflow is being disconnected
